BIT LIFTA™

The Worlds First Autonomous and Tele remote Supported Hands-Free Drill Bit Handling Tool.

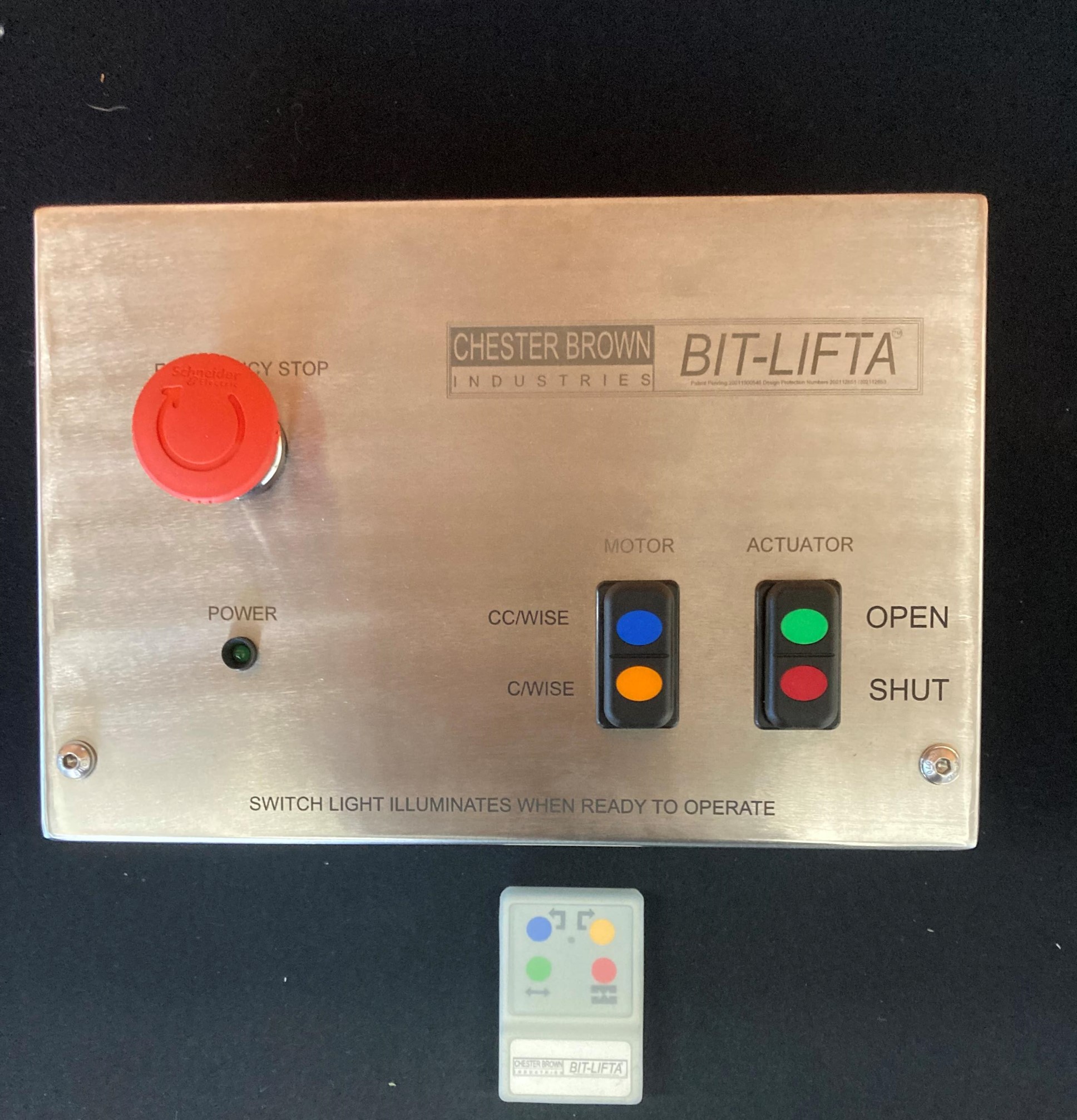

The Chester Brown Industries BIT-LIFTA takes the heavy lifting on DTH Hammer bits while having the ability to change Rotary bits autonomously . The CBI BIT-LIFTA is designed to cater for either bit just by changing the purpose built jaws. The BIT-LIFTA can be controlled from the main panel, by remote control or from a 3rd party input. Power failure will not interfere with its bit grip and has a slow rotation to align the bits in the break-out basket. Units are available in 12v and 24v systems.

Operational Features

Capable of handling rotary and DTH drill bits.
Rotates clockwise and anit-clockwise to ensure alignment to break out basket.
Open and closing of the jaws is hands free.
Purpose build bit grooves to ensure threads are not compromised.

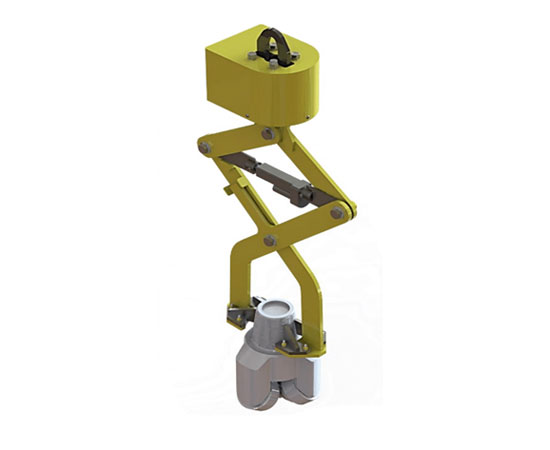

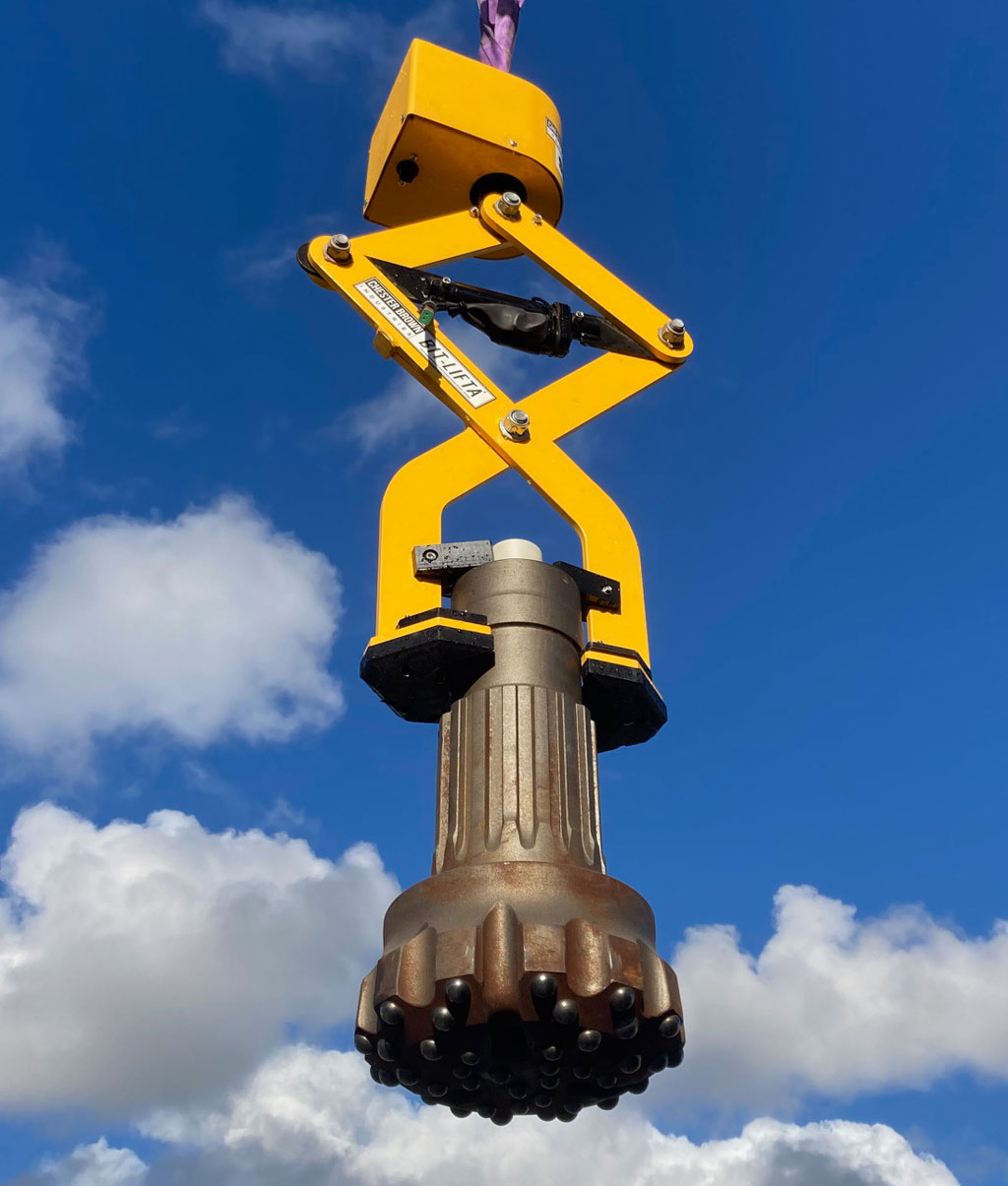

The Bit Lifta - Hammer Bit lifting tool by Chester Brown Industries

Technical Features

Engineered rating 280kg.
Tested at 650kg.

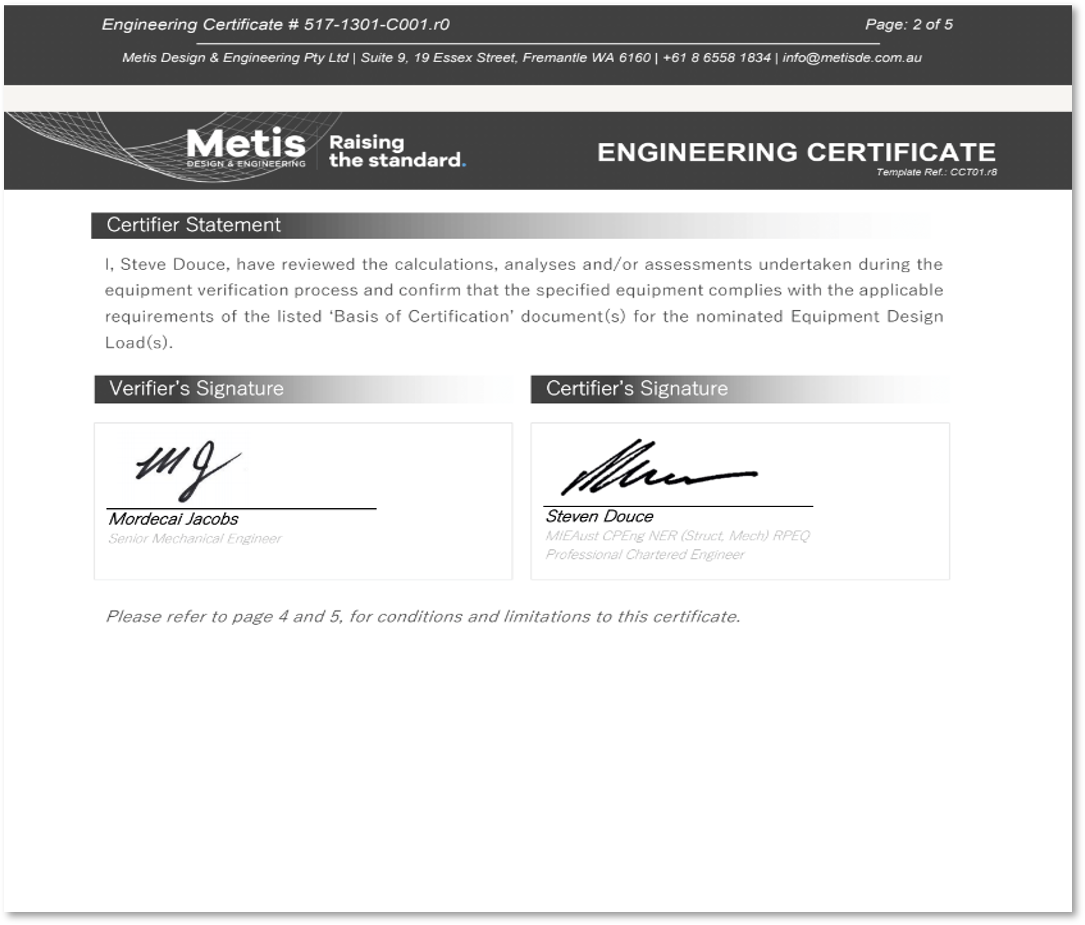

Engineering Certificate.
Op’s and Maintenance Manuals.
Consumables supplied for wear parts.

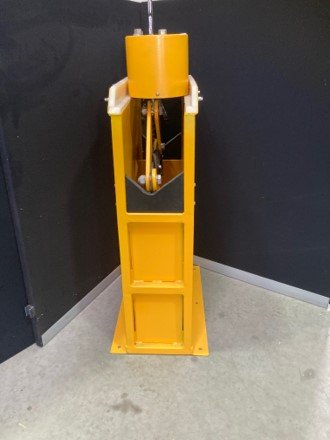

Safe on deck storage for when not in operation.

Safety Features

Hands free rotary drill bit removal and replacement supporting bit changing without the requirement for personnel on the rig.
Bump stops in place to ensure the exhaust tube and bit seal do not get damaged.
Bit grip not compromised in the event of power failure.
